Draw PMV comfort layers

Source: R/comfort-layer-pmv.R
geom_comfort_pmv.Rd

geom_comfort_pmv() draws filled PMV bands, PMV contour lines and labels, plus optional PMV-based standard zones.

Usage

geom_comfort_pmv(
  mapping = NULL,
  data = NULL,
  position = "identity",
  ...,
  model = comfort_model_pmv(),
  standard = NULL,
  bands = TRUE,
  contours = TRUE,
  labels = TRUE,
  contour_levels = seq(-3, 3, by = 0.5),
  band_levels = NULL,
  n = NULL,
  band_render = c("band", "tile"),
  band_method = c("auto", "root", "isoband"),
  alpha = NULL,
  na.rm = FALSE,
  show.legend = NA,
  inherit.aes = TRUE
)

Arguments

mapping

Set of aesthetic mappings created by aes(). If specified and inherit.aes = TRUE (the default), it is combined with the default mapping at the top level of the plot. You must supply mapping if there is no plot mapping.

data

The data to be displayed in this layer. There are three options:

If NULL, the default, the data is inherited from the plot data as specified in the call to ggplot().

A data.frame, or other object, will override the plot data. All objects will be fortified to produce a data frame. See fortify() for which variables will be created.

A function will be called with a single argument, the plot data. The return value must be a data.frame, and will be used as the layer data. A function can be created from a formula (e.g. ~ head(.x, 10)).

position

A position adjustment to use on the data for this layer. This can be used in various ways, including to prevent overplotting and improving the display. The position argument accepts the following:

  • The result of calling a position function, such as position_jitter(). This method allows for passing extra arguments to the position.

  • A string naming the position adjustment. To give the position as a string, strip the function name of the position_ prefix. For example, to use position_jitter(), give the position as "jitter".

  • For more information and other ways to specify the position, see the layer position documentation.

...

Other arguments passed on to layer()'s params argument. These arguments broadly fall into one of 4 categories below. Notably, further arguments to the position argument, or aesthetics that are required can not be passed through .... Unknown arguments that are not part of the 4 categories below are ignored.

  • Static aesthetics that are not mapped to a scale, but are at a fixed value and apply to the layer as a whole. For example, colour = "red" or linewidth = 3. The geom's documentation has an Aesthetics section that lists the available options. The 'required' aesthetics cannot be passed on to the params. Please note that while passing unmapped aesthetics as vectors is technically possible, the order and required length is not guaranteed to be parallel to the input data.

  • When constructing a layer using a stat_*() function, the ... argument can be used to pass on parameters to the geom part of the layer. An example of this is stat_density(geom = "area", outline.type = "both"). The geom's documentation lists which parameters it can accept.

  • Inversely, when constructing a layer using a geom_*() function, the ... argument can be used to pass on parameters to the stat part of the layer. An example of this is geom_area(stat = "density", adjust = 0.5). The stat's documentation lists which parameters it can accept.

  • The key_glyph argument of layer() may also be passed on through .... This can be one of the functions described as key glyphs, to change the display of the layer in the legend.

model

A comfort model object.

standard

PMV-based standard object.

bands, contours, labels

Single logical values controlling whether geom_comfort_pmv() draws filled PMV bands, PMV contour lines, and text labels. PMV standard zones still draw when standard is supplied.

contour_levels

PMV contour levels for geom_comfort_pmv().

band_levels

Number of PMV filled bands, or a numeric vector of PMV band breaks for geom_comfort_pmv().

n

Grid resolution in dry-bulb and humidity-ratio directions. If NULL, PMV bands use c(360, 220) and PMV curves use 360.

band_render

Band rendering mode. "band" draws filled polygon regions from continuous band boundaries; "tile" draws sampled grid cells directly.

band_method

Advanced PMV boundary construction method used only when band_render = "band". "auto" and "root" use root-traced PMV boundaries; "isoband" uses gridded isobands.

alpha

Layer transparency. PMV standards keep their own defaults unless alpha is supplied.

na.rm

If FALSE, the default, missing values are removed with a warning. If TRUE, missing values are silently removed.

show.legend

logical. Should this layer be included in the legends? NA, the default, includes if any aesthetics are mapped. FALSE never includes, and TRUE always includes. It can also be a named logical vector to finely select the aesthetics to display. To include legend keys for all levels, even when no data exists, use TRUE. If NA, all levels are shown in legend, but unobserved levels are omitted.

inherit.aes

If FALSE, overrides the default aesthetics, rather than combining with them. This is most useful for helper functions that define both data and aesthetics and shouldn't inherit behaviour from the default plot specification, e.g. annotation_borders().

Value

A list of ggplot additions.

Details

n trades drawing smoothness for build time. For PMV bands, supply one value to use the same dry-bulb and humidity-ratio resolution, or two values for separate directions. PMV contour curves and standard-zone boundaries use the first value because they trace roots along one sampling direction. Smaller values such as n = c(45, 30) are useful for exploratory work; larger values produce smoother publication graphics.

band_render = "band" draws filled polygon bands from continuous boundaries. band_render = "tile" draws sampled grid cells directly. band_method is a PMV-specific advanced option for polygon bands: "root" traces PMV band boundaries directly, while "isoband" builds them from the sampled grid.

Examples

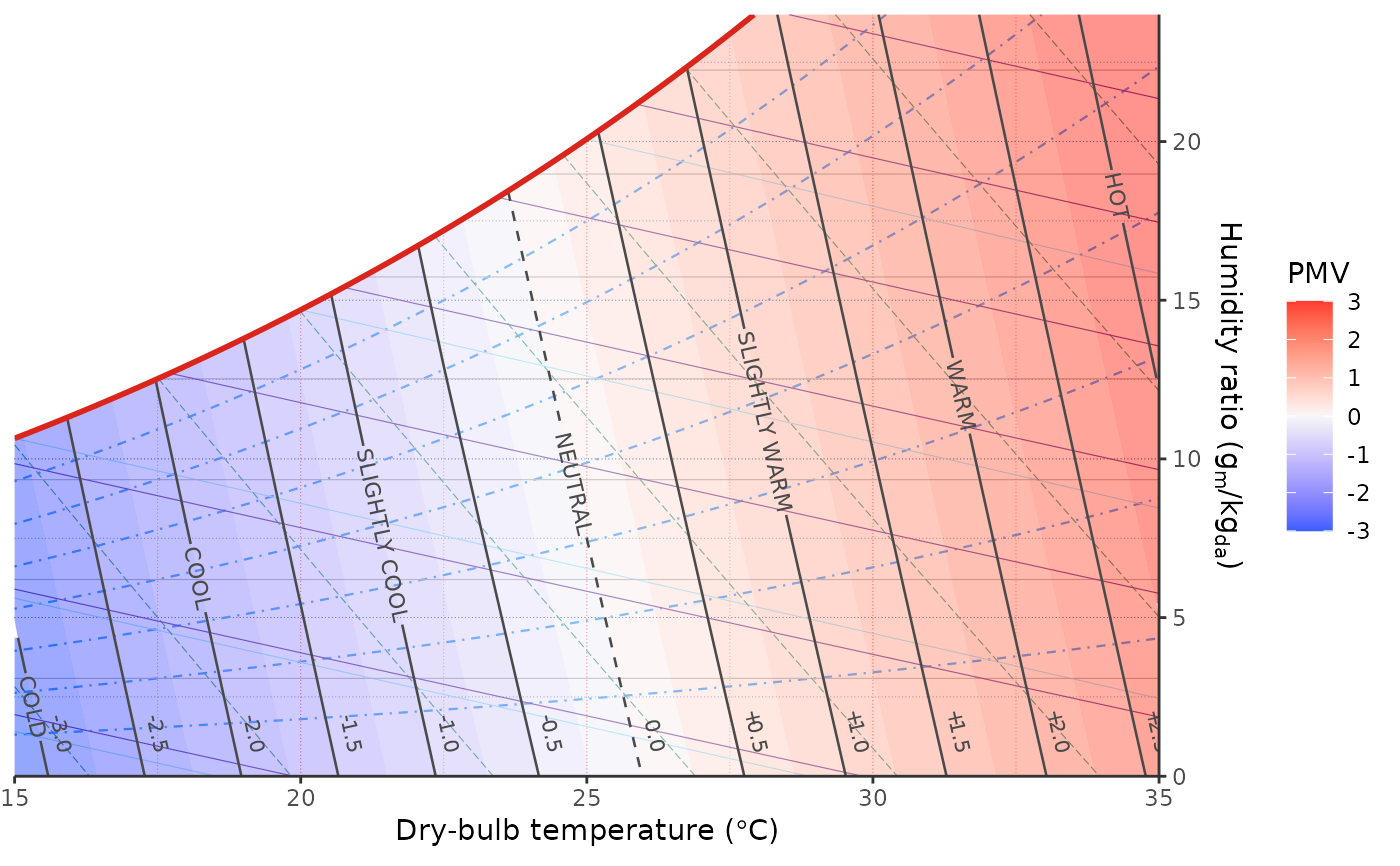

# Draw PMV comfort bands, contours, and labels.
ggpsychro(tdb_lim = c(15, 35), hum_lim = c(0, 24)) +
    geom_comfort_pmv(n = c(45, 30)) +
    scale_fill_comfort_pmv(name = "PMV")

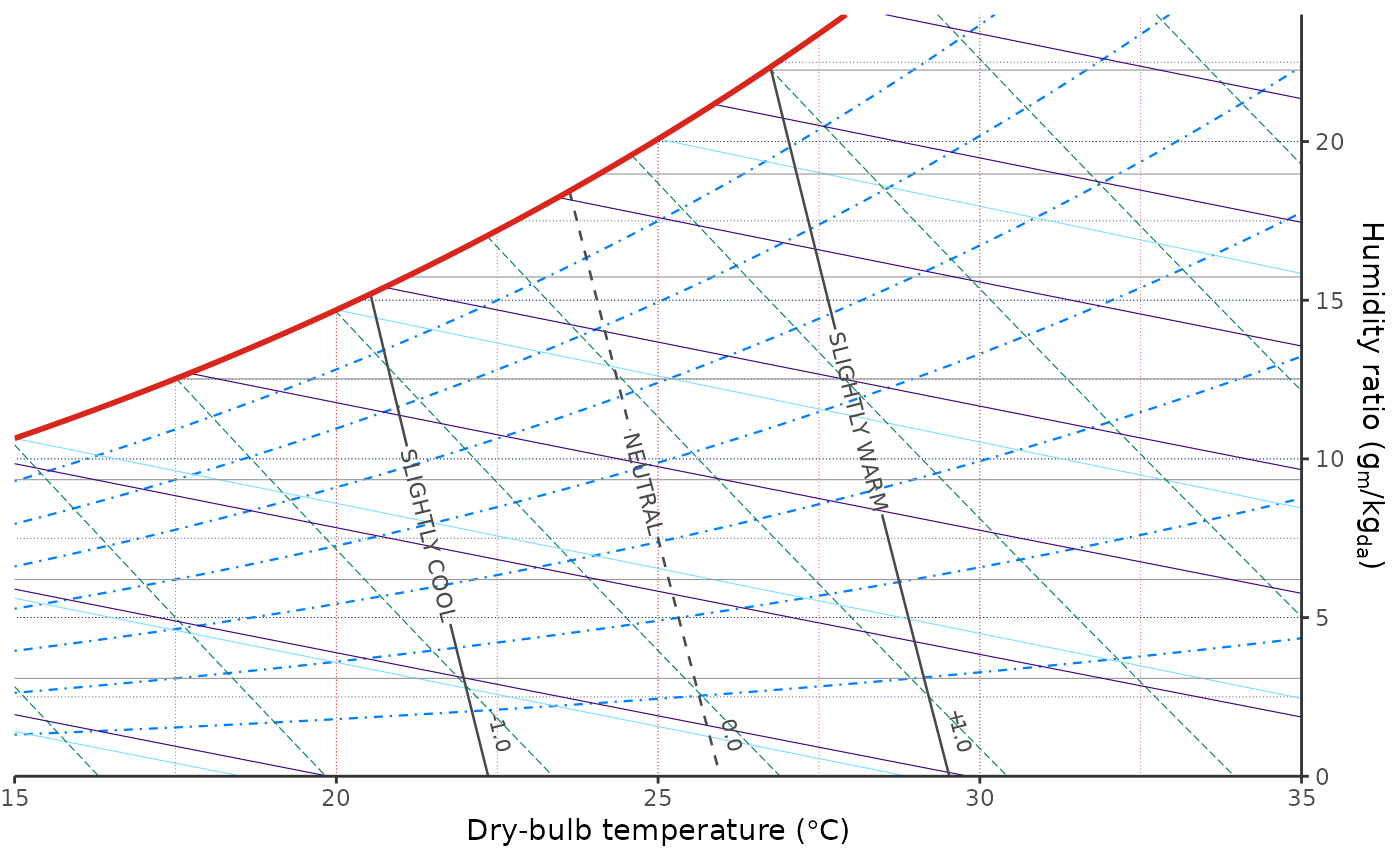

# Draw labelled PMV contour lines.
ggpsychro(tdb_lim = c(15, 35), hum_lim = c(0, 24)) +
    geom_comfort_pmv(
        bands = FALSE,
        contours = TRUE,
        labels = TRUE,
        contour_levels = c(-1, 0, 1),
        n = 80
    )


# Draw sampled PMV values as grid tiles.
ggpsychro(tdb_lim = c(15, 35), hum_lim = c(0, 24)) +
    geom_comfort_pmv(band_render = "tile", contours = FALSE, n = c(45, 30))

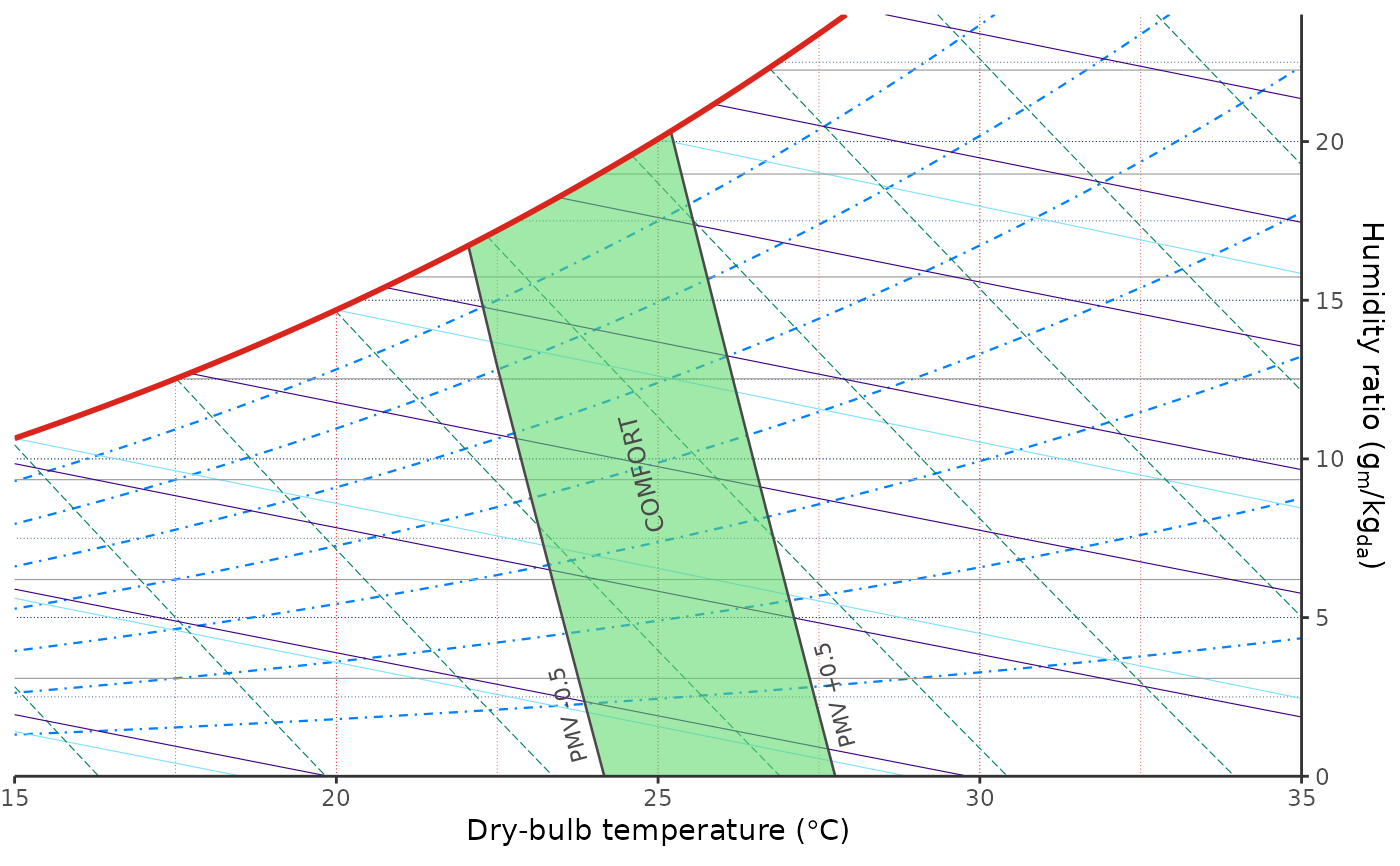

# Draw a PMV-based comfort standard zone.
ggpsychro(tdb_lim = c(15, 35), hum_lim = c(0, 24)) +
    geom_comfort_pmv(
        standard = comfort_pmv_ashrae55(),
        bands = FALSE,
        contours = FALSE,
        n = 80
    )
