Plotting psychrometric data • ggpsychro

Psychrometric charts place dry-bulb temperature on one axis and humidity ratio on the other. In real data, however, the second state property is often relative humidity, wet-bulb temperature, vapor pressure, specific volume, or enthalpy. ggpsychro provides stats that convert those properties into chart coordinates.

Plot relative humidity data

Use stat = "relhum" with a regular ggplot geom when each row has dry-bulb temperature and relative humidity. Relative humidity values are supplied as percent values.

weather <- data.frame(
    month = rep(c("May", "June", "July", "August"), each = 12),
    hour = rep(seq(0, 22, by = 2), times = 4)
)
weather$dry_bulb_temperature <- 16 +
    rep(c(1, 4, 7, 6), each = 12) +
    9 * sin((weather$hour - 6) / 24 * 2 * pi)
weather$relative_humidity <- 72 -
    rep(c(0, 8, 14, 10), each = 12) -
    18 * sin((weather$hour - 6) / 24 * 2 * pi)
weather$relative_humidity <- pmax(30, pmin(95, weather$relative_humidity))

ggpsychro(weather, tdb_lim = c(0, 40), hum_lim = c(0, 25)) +
    psychro_preset("minimal") +
    geom_point(
        aes(dry_bulb_temperature, relhum = relative_humidity),
        stat = "relhum",
        color = "#0f766e",
        alpha = 0.55,
        size = 1.6
    ) +
    facet_wrap(~month)

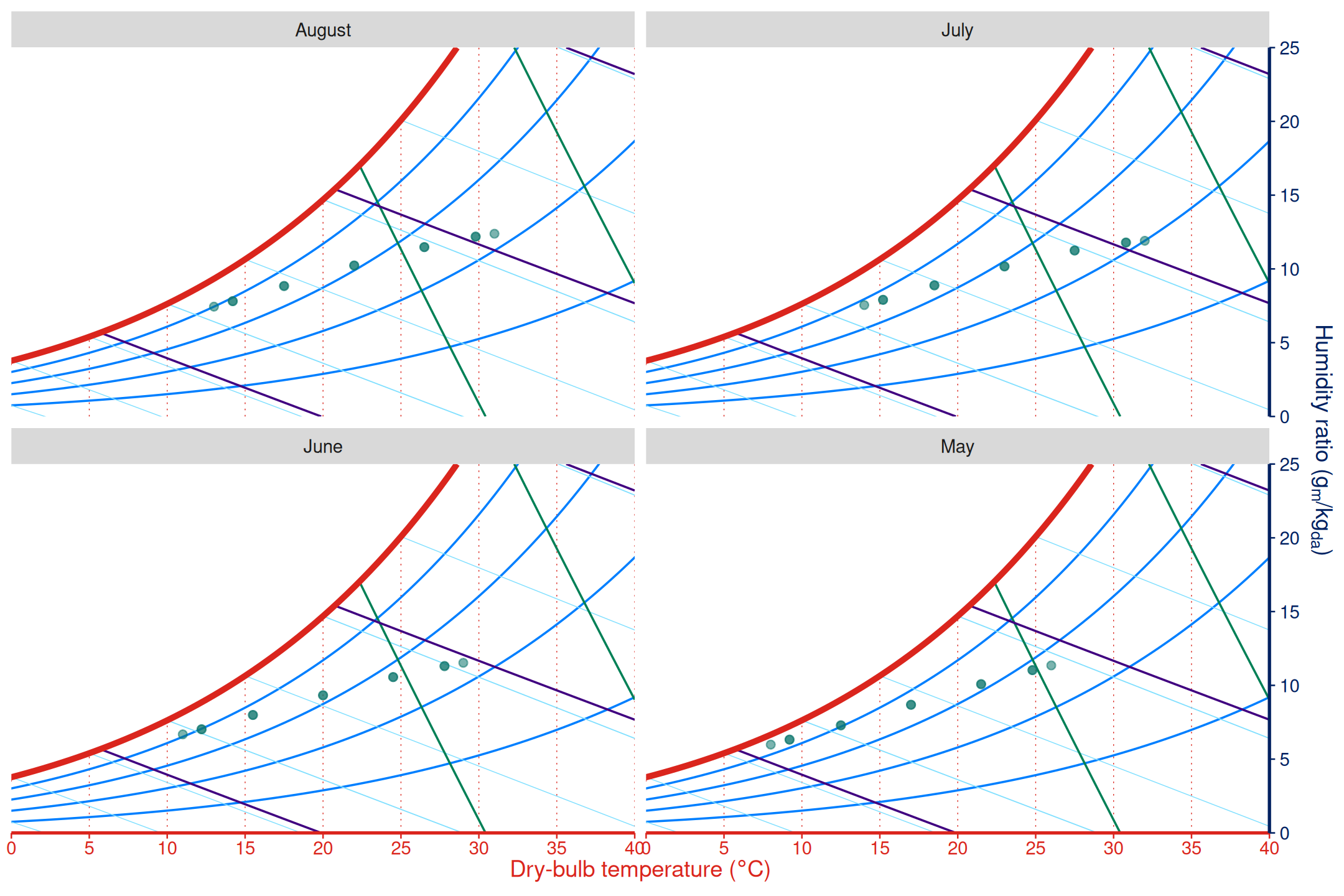

Faceted psychrometric scatter plot of synthetic monthly dry-bulb temperature and relative humidity data.

Draw constant-property lines

The same stats can be used with line geoms. This is useful for adding calculated reference lines or overlays from data.

ggpsychro(tdb_lim = c(10, 35), hum_lim = c(0, 25)) +
    geom_grid_relhum() +
    geom_grid_wetbulb() +
    geom_line(
        aes(x = 20:32, wetbulb = 18),
        stat = "wetbulb",
        color = "#be123c",
        linewidth = 1
    )

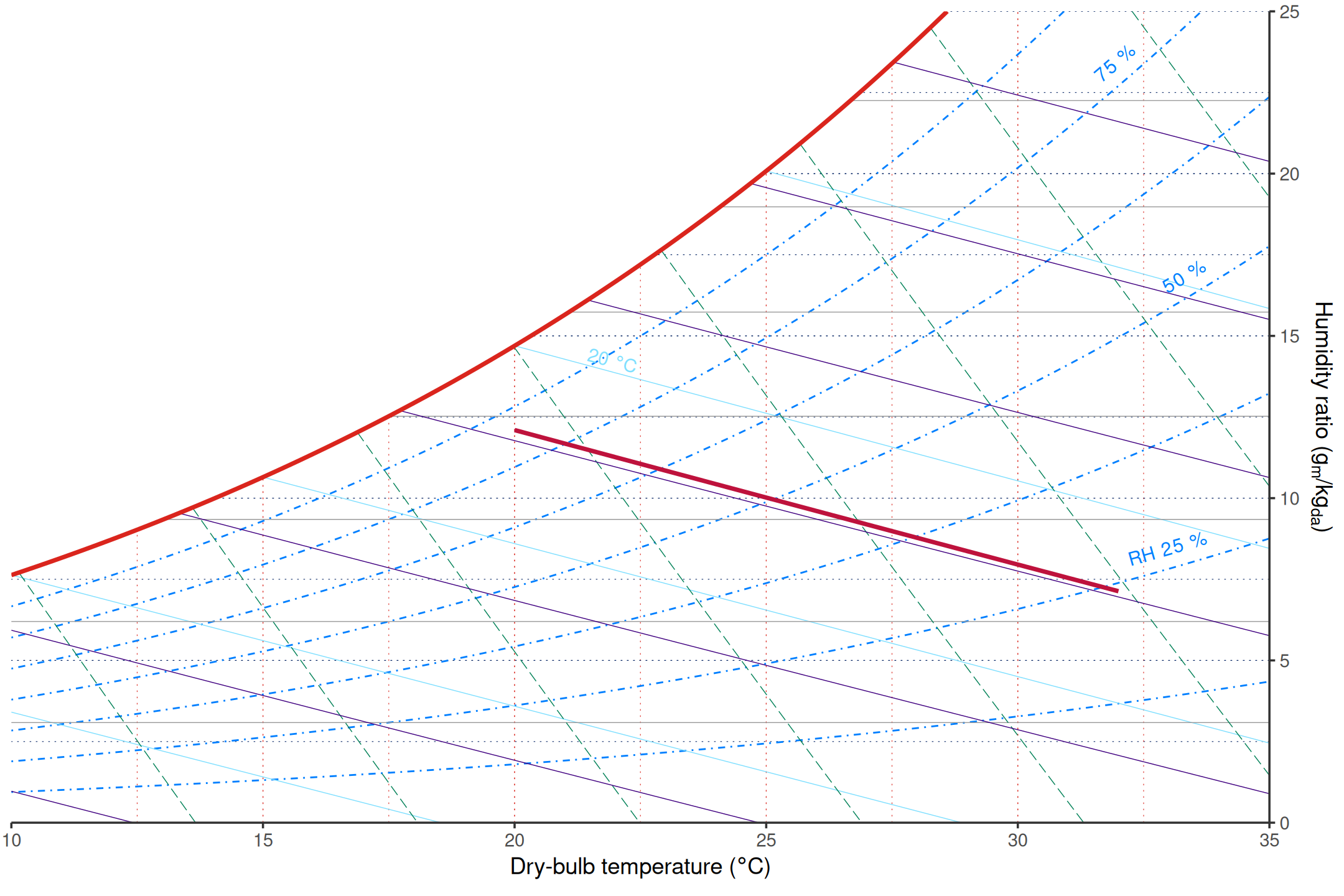

Psychrometric chart with labelled relative humidity and wet-bulb grids plus a highlighted constant wet-bulb line.

Available stats

The property-specific stats are:

Stat	Required property aesthetic
`stat_relhum()`	`relhum`
`stat_wetbulb()`	`wetbulb`
`stat_vappres()`	`vappres`
`stat_specvol()`	`specvol`
`stat_enthalpy()`	`enthalpy`

Each stat also needs dry-bulb temperature through x. When used inside a ggpsychro() plot, units and pressure are inherited from the parent chart.

line_data <- data.frame(tdb = seq(15, 35, by = 1))

ggpsychro(tdb_lim = c(10, 40), hum_lim = c(0, 30)) +
    psychro_preset("minimal") +
    geom_line(
        aes(x = tdb, relhum = 50),
        data = line_data,
        stat = "relhum",
        color = "#0f766e"
    ) +
    geom_line(
        aes(x = tdb, wetbulb = 18),
        data = line_data,
        stat = "wetbulb",
        color = "#be123c"
    )
#> Warning: Computation failed in `stat_wetbulb()`.
#> Caused by error in `GetHumRatioFromTWetBulb()`:
#> ! Wet bulb temperature is above dry bulb temperature

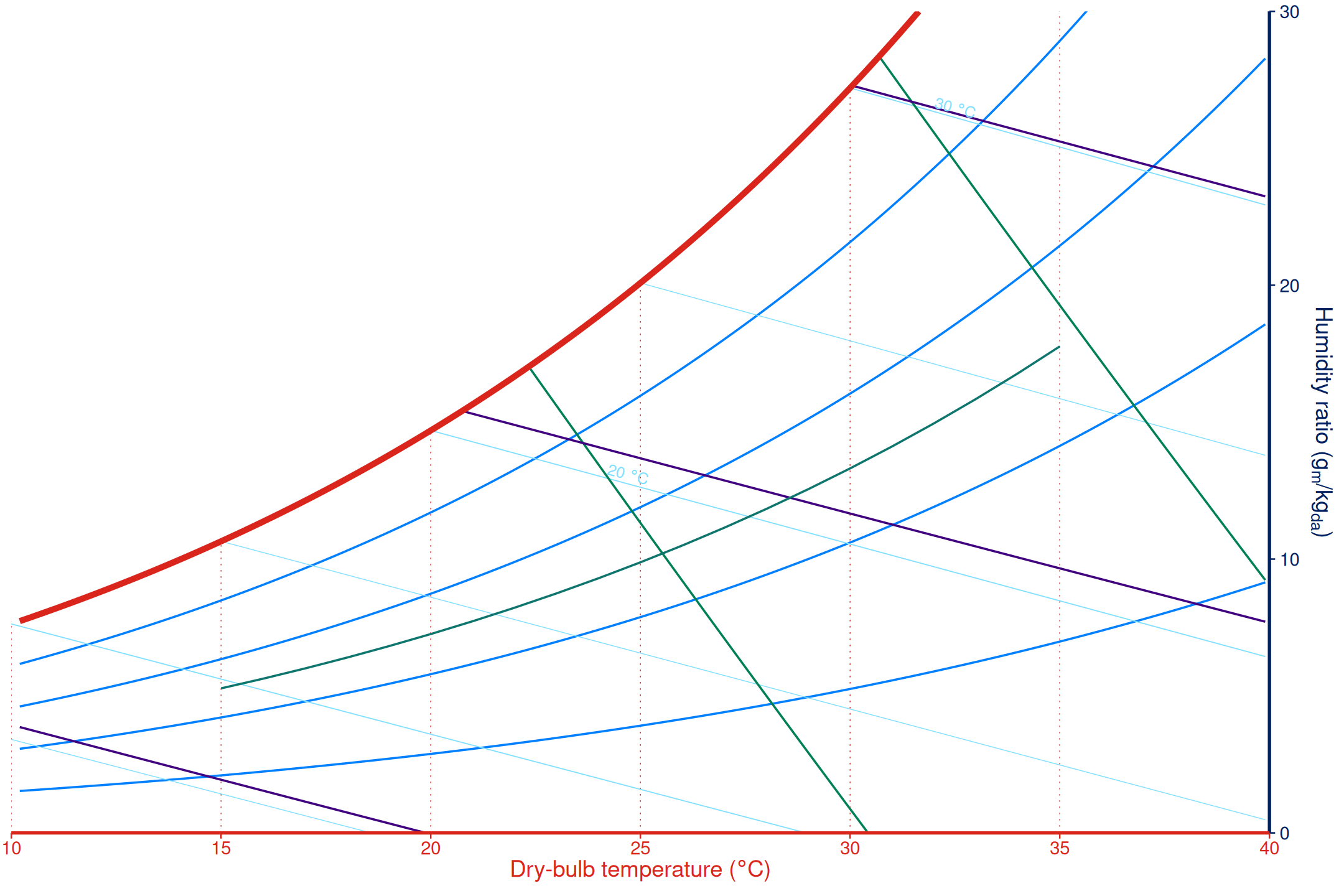

Minimal psychrometric chart with one constant relative-humidity line and one constant wet-bulb line.

Summarize observations as tiles

Hourly weather and simulation outputs can be summarized as psychrometric tiles. geom_psychro_tile() bins observations on dry-bulb temperature and humidity ratio coordinates. It accepts either humidity ratio through y or relative humidity through relhum, and exposes after_stat(hours) for distribution plots.

weather$cooling_load <- pmax(0, weather$dry_bulb_temperature - 24) * 1.5

ggpsychro(weather, tdb_lim = c(0, 40), hum_lim = c(0, 25)) +
    geom_grid_relhum() +
    geom_psychro_tile(
        aes(
            dry_bulb_temperature,
            relhum = relative_humidity,
            fill = after_stat(hours)
        ),
        binwidth = c(2, 1)
    ) +
    scale_fill_gradient("Hours", low = "#dbeafe", high = "#1d4ed8")

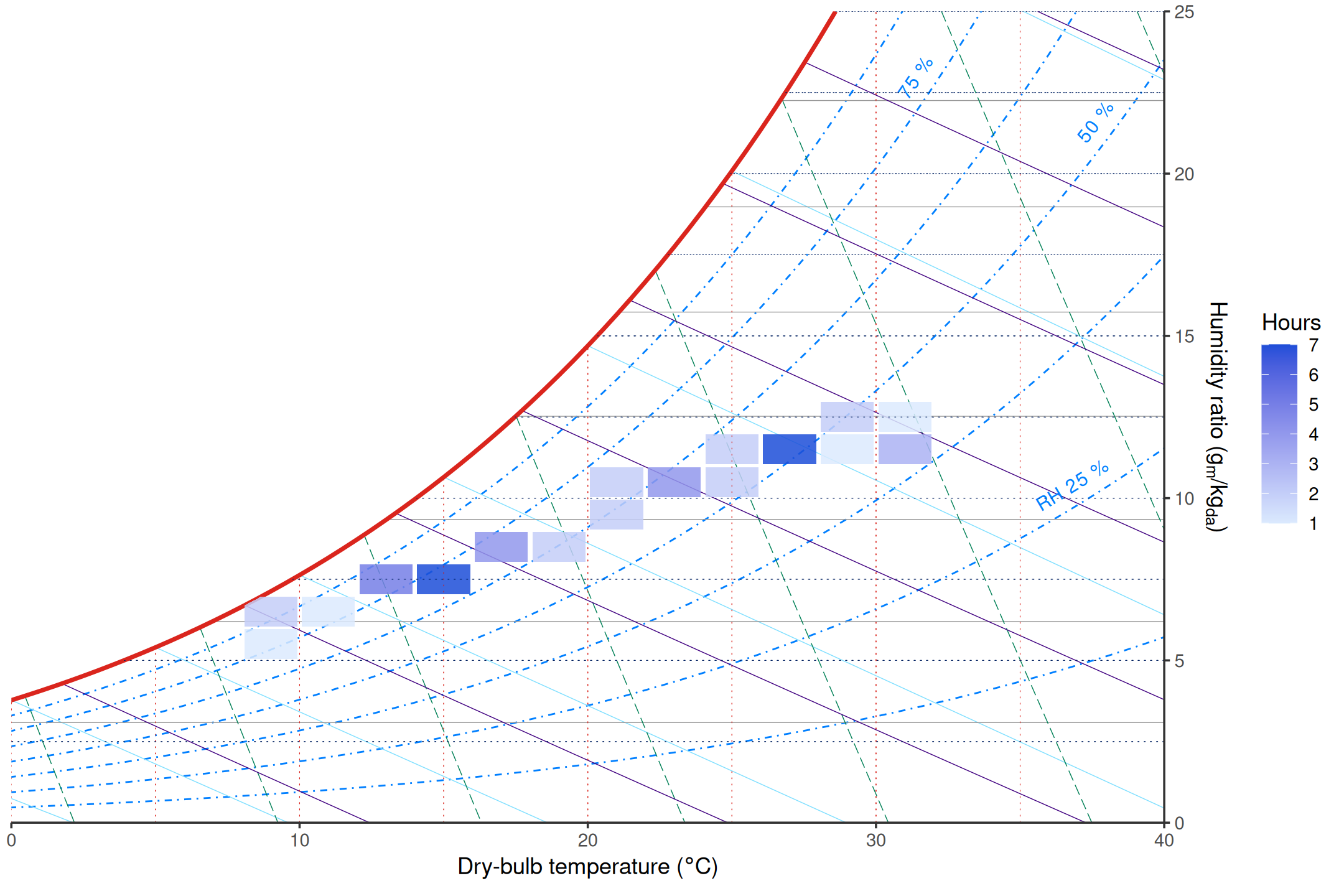

Psychrometric tile plot showing synthetic hourly observations binned by dry-bulb temperature and relative humidity.

The same bins can aggregate another metric with the value aesthetic and fun.

ggpsychro(weather, tdb_lim = c(0, 40), hum_lim = c(0, 25)) +
    geom_grid_relhum() +
    geom_psychro_tile(
        aes(
            dry_bulb_temperature,
            relhum = relative_humidity,
            value = cooling_load,
            fill = after_stat(value)
        ),
        binwidth = c(4, 2),
        fun = "mean"
    ) +
    scale_fill_gradient("Mean cooling load", low = "#fef3c7", high = "#b45309")

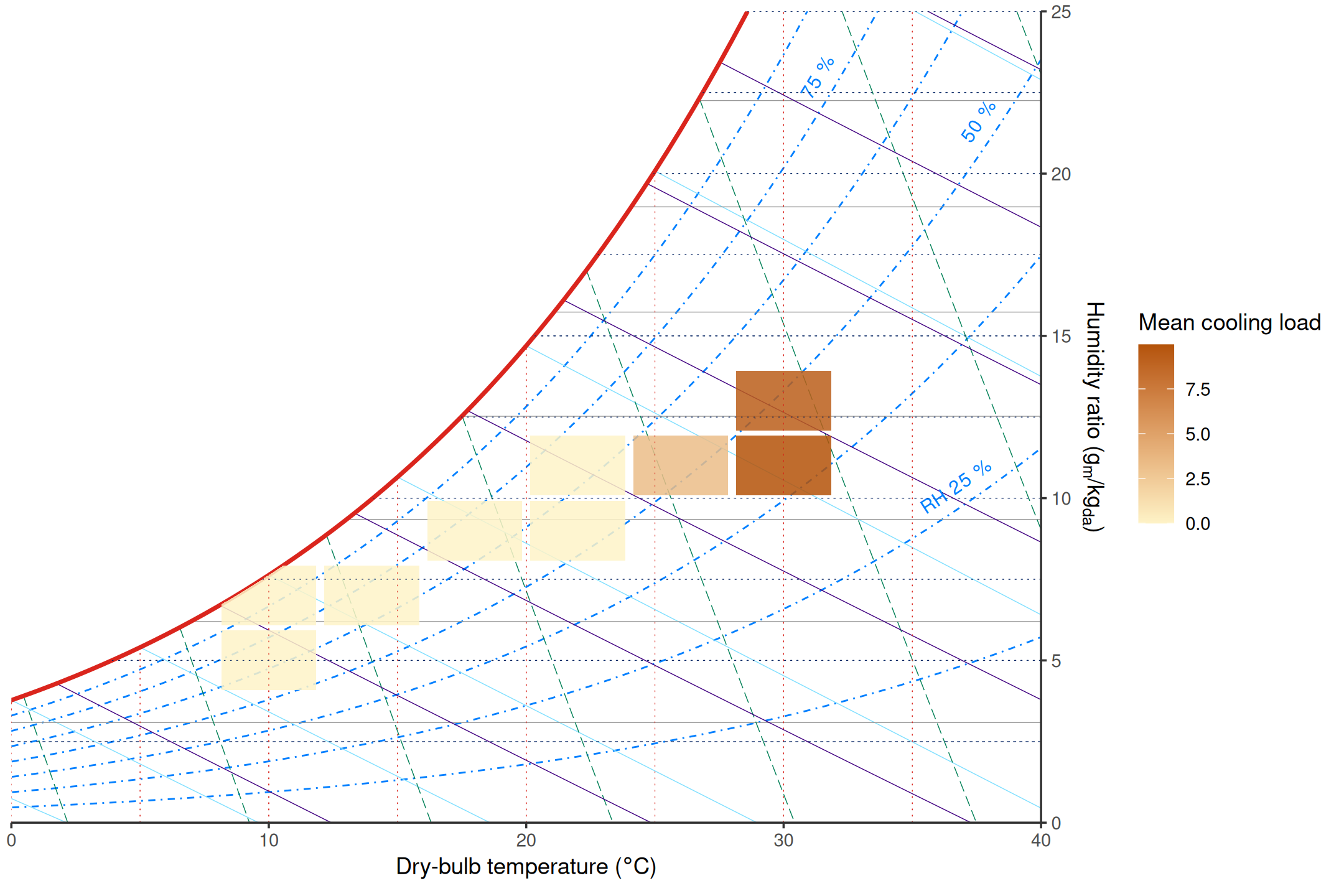

Psychrometric tile plot showing mean cooling load aggregated within dry-bulb and humidity-ratio bins.

For state points, process lines, and comfort zones, see Zones and processes.
