Comfort model objects — comfort_model

Model objects capture the fixed inputs used by comfort layers. They can be reused across overlays, contours, zones, and point states.

Usage

comfort_model_pmv(
  tr = NULL,
  vr = 0.1,
  met = 1.2,
  clo = 0.5,
  wme = 0,
  model = "7730-2005",
  limit_inputs = FALSE,
  round_output = FALSE
)

comfort_model_set(
  tr = NULL,
  v = 0.1,
  met = 1.2,
  clo = 0.5,
  wme = 0,
  limit_inputs = FALSE,
  body_surface_area = 1.8258,
  p_atm = NULL,
  position = c("standing", "sitting"),
  round_output = FALSE
)

comfort_model_adaptive(
  t_running,
  tr = NULL,
  v = 0.1,
  standard = c("ashrae55", "en16798"),
  category = NULL,
  limit_inputs = TRUE,
  round_output = FALSE
)

comfort_model_heat_index(
  solar_exposure = 0,
  limit_inputs = TRUE,
  round_output = FALSE
)

Arguments

tr: Mean radiant temperature. Defaults to tdb.
vr: Relative air speed for PMV.
met: Metabolic rate in met.
clo: Clothing insulation in clo.
wme: External work in met.
model: PMV model/version label. Currently "7730-2005" is implemented.
limit_inputs: If TRUE, values outside the model applicability range are returned as NA.
round_output: If TRUE, round model outputs. Comfort plot layers use unrounded values by default so contours and zones remain smooth.
v: Air speed for SET and adaptive comfort.
body_surface_area: Body surface area in square meters for SET.
p_atm: Atmospheric pressure in Pa.
position: Body position, "standing" or "sitting".
t_running: Running mean outdoor temperature.
standard: Adaptive comfort standard.
category: Adaptive comfort category.
solar_exposure: Relative solar exposure for heat index, from 0 to 1.

Value

A comfort model object.

Details

comfort_model_*() helpers are for chart layers and stats. For direct vectorized calculations, use comfort_pmv(), comfort_set(), comfort_adaptive(), or comfort_heat_index(). For drawing on a psychrometric chart, pass a model object to geom_comfort_*() layers.

Examples

# Create a PMV model object.
comfort_model_pmv(met = 1.4, clo = 0.5)
#> $type
#> [1] "pmv"
#>
#> $params
#> $params$tr
#> NULL
#>
#> $params$vr
#> [1] 0.1
#>
#> $params$met
#> [1] 1.4
#>
#> $params$clo
#> [1] 0.5
#>
#> $params$wme
#> [1] 0
#>
#> $params$model
#> [1] "7730-2005"
#>
#> $params$limit_inputs
#> [1] FALSE
#>
#> $params$round_output
#> [1] FALSE
#>
#>
#> attr(,"class")
#> [1] "PsyComfortModel" "list"

# Create a SET model object.
comfort_model_set(v = 0.2)
#> $type
#> [1] "set"
#>
#> $params
#> $params$tr
#> NULL
#>
#> $params$v
#> [1] 0.2
#>
#> $params$met
#> [1] 1.2
#>
#> $params$clo
#> [1] 0.5
#>
#> $params$wme
#> [1] 0
#>
#> $params$limit_inputs
#> [1] FALSE
#>
#> $params$body_surface_area
#> [1] 1.8258
#>
#> $params$p_atm
#> NULL
#>
#> $params$position
#> [1] "standing"
#>
#> $params$round_output
#> [1] FALSE
#>
#>
#> attr(,"class")
#> [1] "PsyComfortModel" "list"

# Create an adaptive comfort model object.
comfort_model_adaptive(t_running = 22)
#> $type
#> [1] "adaptive"
#>
#> $params
#> $params$t_running
#> [1] 22
#>
#> $params$tr
#> NULL
#>
#> $params$v
#> [1] 0.1
#>
#> $params$standard
#> [1] "ashrae55"
#>
#> $params$category
#> NULL
#>
#> $params$limit_inputs
#> [1] TRUE
#>
#> $params$round_output
#> [1] FALSE
#>
#>
#> attr(,"class")
#> [1] "PsyComfortModel" "list"

# Create a heat-index model object.
comfort_model_heat_index(solar_exposure = 0.5)
#> $type
#> [1] "heat_index"
#>
#> $params
#> $params$solar_exposure
#> [1] 0.5
#>
#> $params$limit_inputs
#> [1] TRUE
#>
#> $params$round_output
#> [1] FALSE
#>
#>
#> attr(,"class")
#> [1] "PsyComfortModel" "list"

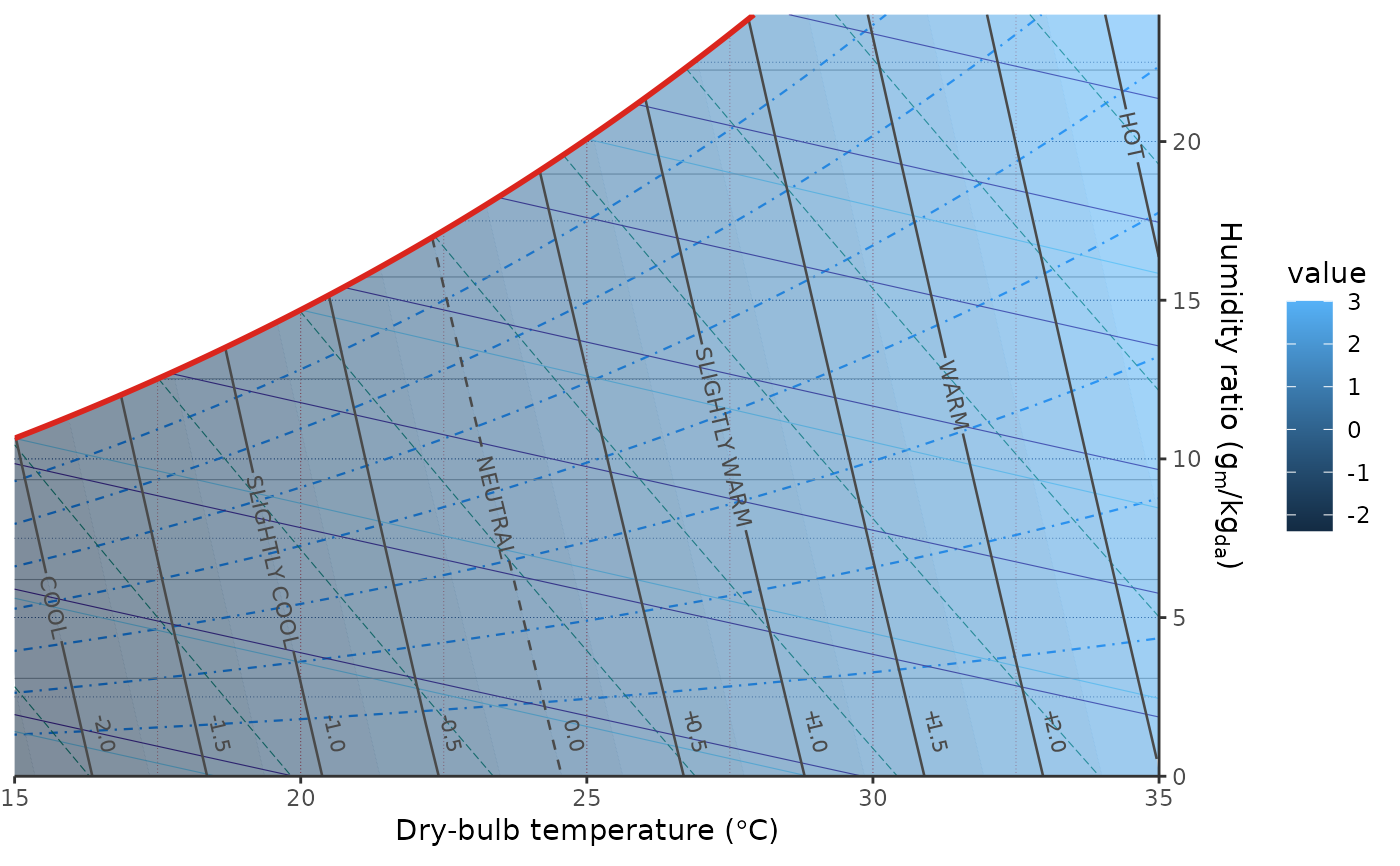

# Draw a PMV overlay using custom activity and clothing assumptions.
ggpsychro(tdb_lim = c(15, 35), hum_lim = c(0, 24)) +
    geom_comfort_pmv(
        model = comfort_model_pmv(met = 1.4, clo = 0.5),
        n = c(45, 30)
    )

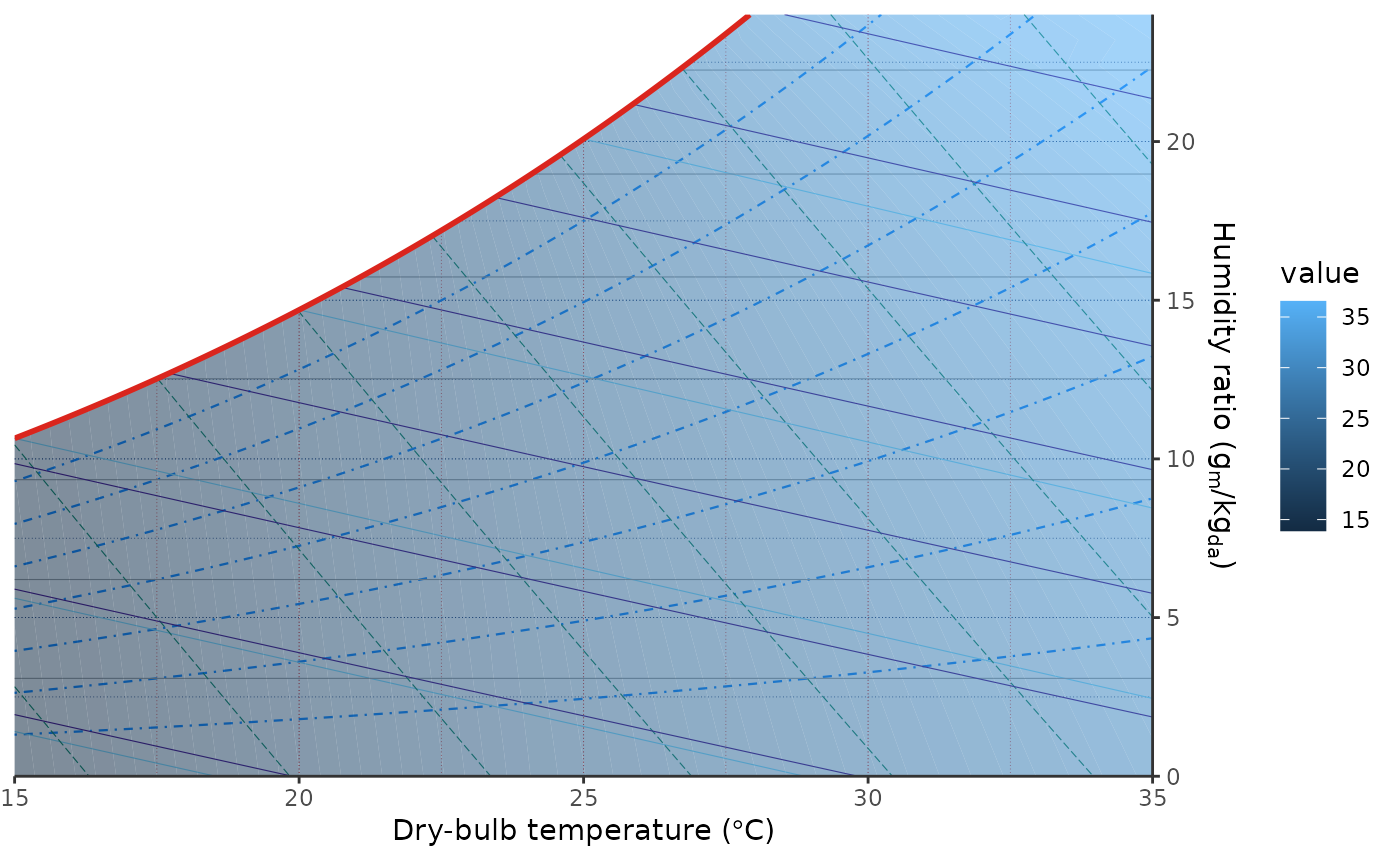

# Draw SET as the filled comfort metric.
ggpsychro(tdb_lim = c(15, 35), hum_lim = c(0, 24)) +
    geom_comfort_set(
        model = comfort_model_set(v = 0.2),
        n = c(45, 30)
    )

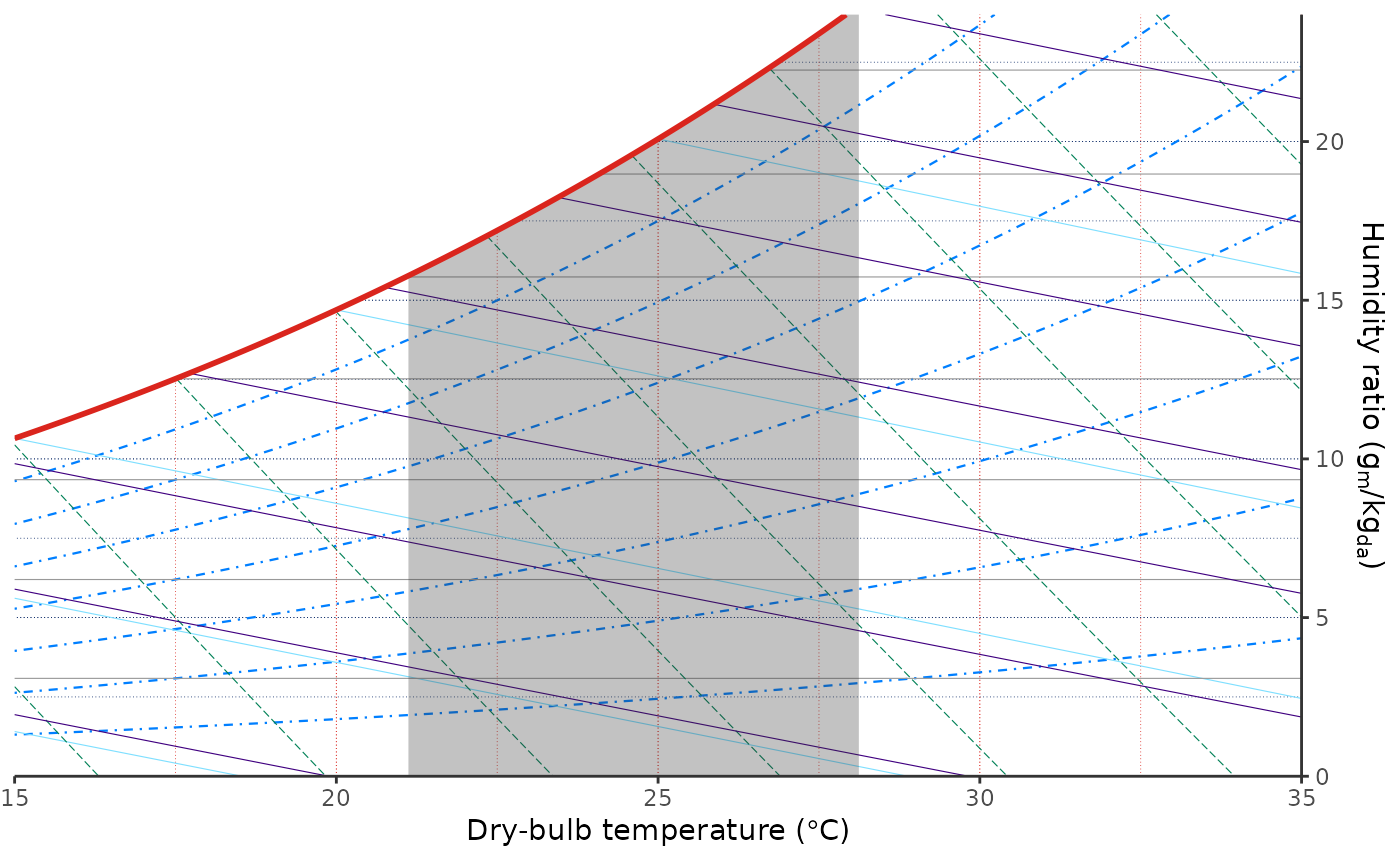

# Draw the adaptive acceptability region.
ggpsychro(tdb_lim = c(15, 35), hum_lim = c(0, 24)) +
    geom_comfort_adaptive(
        t_running = 22,
        n = c(45, 30),
        alpha = 0.3
    )

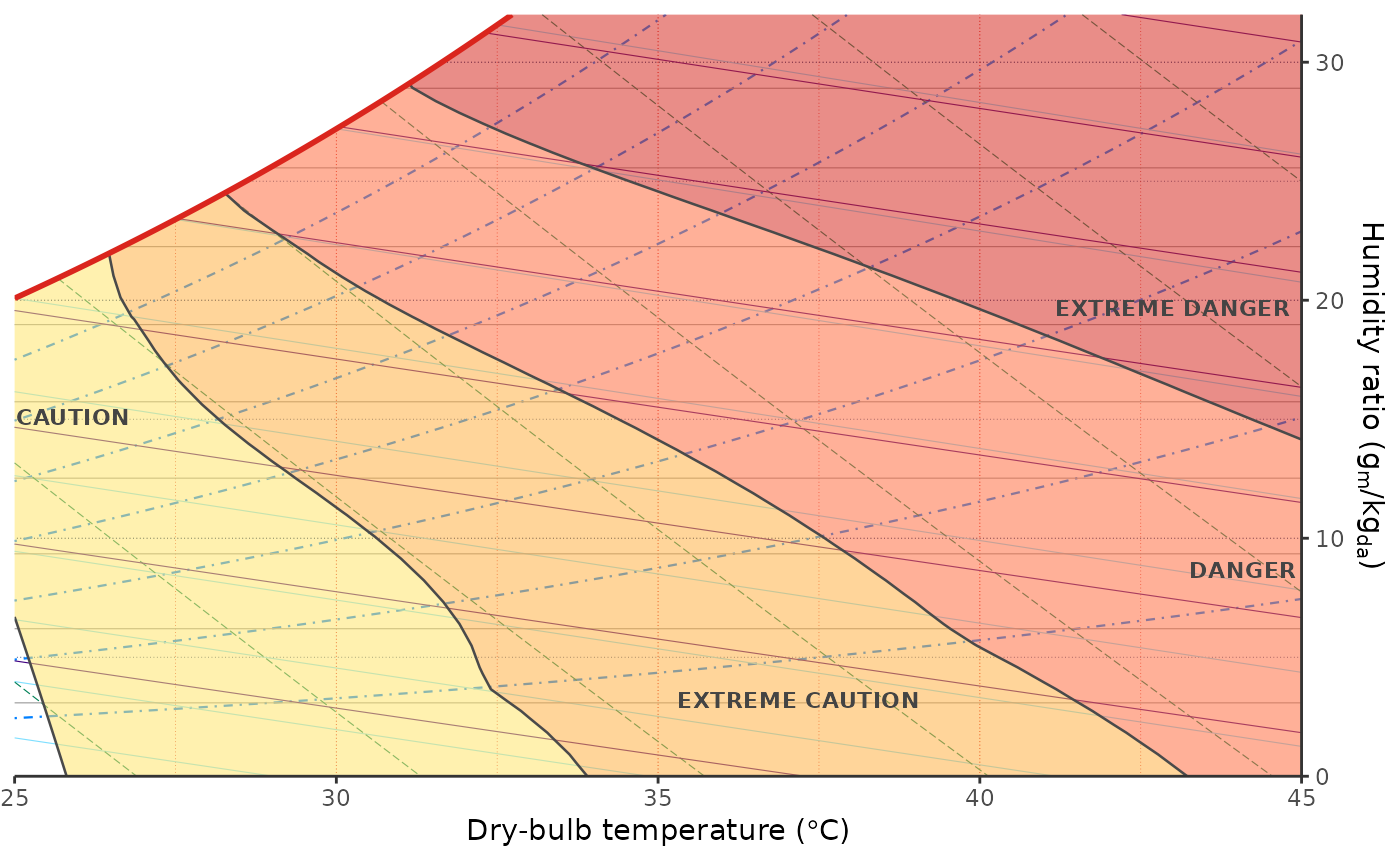

# Draw heat-index categories with a solar exposure adjustment.
ggpsychro(tdb_lim = c(25, 45), hum_lim = c(0, 32)) +
    geom_comfort_heat_index(
        model = comfort_model_heat_index(solar_exposure = 0.5),
        n = c(55, 35)
    )
