PMV-based comfort standards

These helpers describe static PMV-based comfort zones. They are distinct from adaptive comfort models such as comfort_model_adaptive(), which use running mean outdoor temperature and produce operative-temperature bands.

Usage

comfort_pmv_ashrae55(edition = "2017", range = c(-0.5, 0.5))

comfort_pmv_en15251(edition = "2007", breaks = c(-0.7, -0.2, 0.2, 0.7))

Arguments

edition

Standard edition. Currently "2017" for ASHRAE 55 and "2007" for EN 15251.

range

PMV comfort interval for ASHRAE 55.

breaks

PMV boundaries for EN 15251 comfort bands.

Value

A comfort standard object.

Examples

# Create the ASHRAE 55 PMV comfort interval.
comfort_pmv_ashrae55()
#> $name
#> [1] "ashrae55_2017"
#>
#> $breaks
#> [1] -0.5  0.5
#>
#> $fills
#> [1] "#5BD96A"
#>
#> $alphas
#> [1] 0.58
#>
#> attr(,"class")
#> [1] "PsyComfortStandard" "list"

# Create the EN 15251 PMV comfort bands.
comfort_pmv_en15251()
#> $name
#> [1] "en15251_2007"
#>
#> $breaks
#> [1] -0.7 -0.2  0.2  0.7
#>
#> $fills
#> [1] "#9BE89D" "#39D84A" "#9BE89D"
#>
#> $alphas
#> [1] 0.34 0.58 0.34
#>
#> attr(,"class")
#> [1] "PsyComfortStandard" "list"

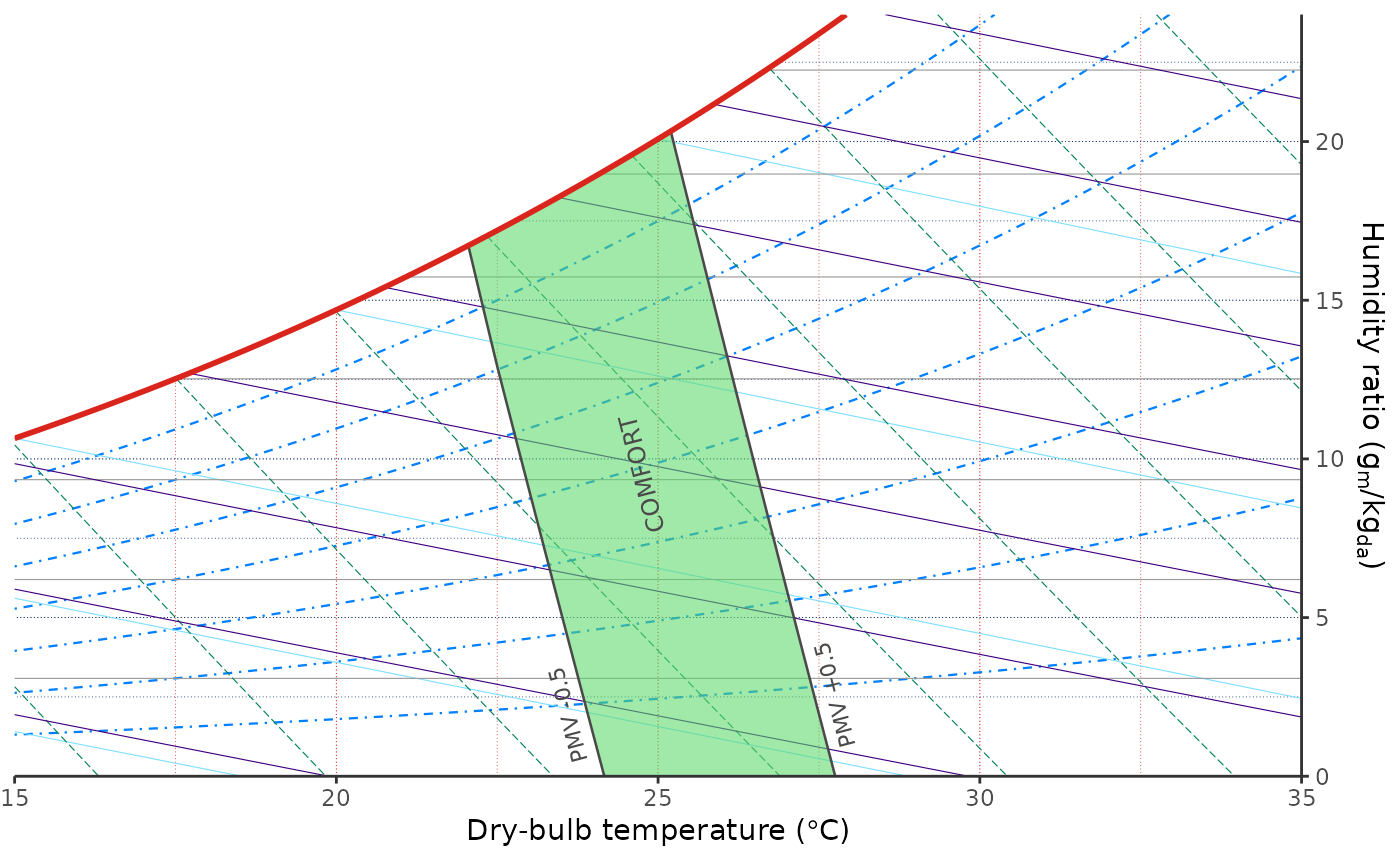

# Draw the ASHRAE 55 comfort zone.
ggpsychro(tdb_lim = c(15, 35), hum_lim = c(0, 24)) +
    geom_comfort_pmv(
        standard = comfort_pmv_ashrae55(),
        bands = FALSE,
        contours = FALSE,
        n = 80
    )

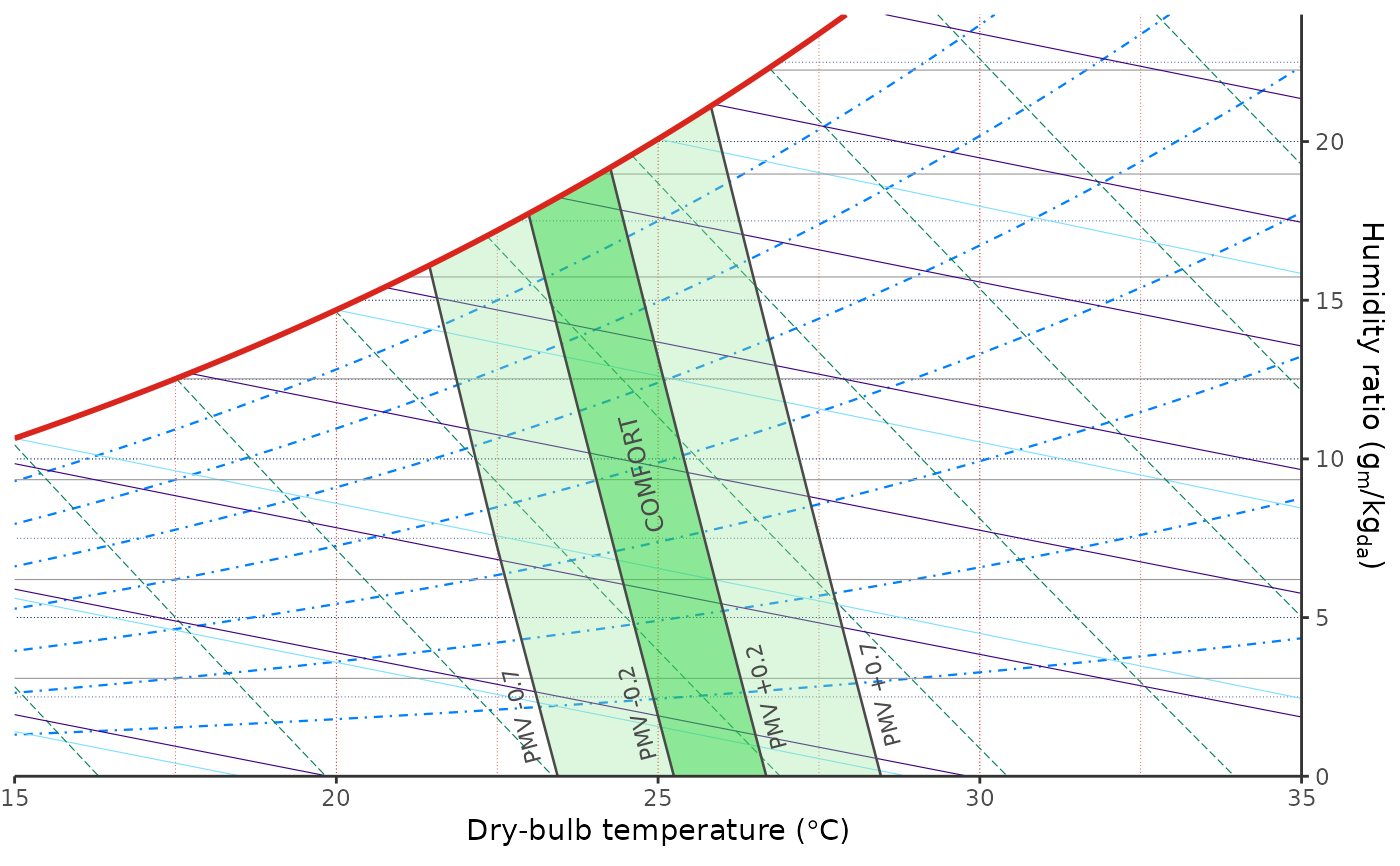

# Draw the EN 15251 comfort bands.
ggpsychro(tdb_lim = c(15, 35), hum_lim = c(0, 24)) +
    geom_comfort_pmv(
        standard = comfort_pmv_en15251(),
        bands = FALSE,
        contours = FALSE,
        n = 80
    )
