Transformation object for psychrometric chart

scale_drybulb_continuous(
  name = waiver(),
  breaks = waiver(),
  minor_breaks = waiver(),
  labels = waiver(),
  limits = NULL,
  units = waiver(),
  ...
)

scale_humratio_continuous(
  name = waiver(),
  breaks = waiver(),
  minor_breaks = waiver(),
  labels = waiver(),
  limits = NULL,
  units = waiver(),
  ...
)

scale_relhum(
  breaks = waiver(),
  minor_breaks = waiver(),
  labels = waiver(),
  units = waiver(),
  ...
)

scale_wetbulb(
  breaks = waiver(),
  minor_breaks = waiver(),
  labels = waiver(),
  limits = NULL,
  units = waiver(),
  ...
)

scale_vappres(
  breaks = waiver(),
  minor_breaks = waiver(),
  labels = waiver(),
  limits = NULL,
  units = waiver(),
  ...
)

scale_specvol(
  breaks = waiver(),
  minor_breaks = waiver(),
  labels = waiver(),
  limits = NULL,
  units = waiver(),
  ...
)

scale_enthalpy(
  breaks = waiver(),
  minor_breaks = waiver(),
  labels = waiver(),
  limits = NULL,
  units = waiver(),
  ...
)

Arguments

name

The name of the scale. Used as the axis or legend title. If waiver(), the default, the name of the scale is taken from the first mapping used for that aesthetic. If NULL, the legend title will be omitted.

breaks

One of:

  • NULL for no breaks

  • waiver() for the default breaks computed by the transformation object

  • A numeric vector of positions

  • A function that takes the limits as input and returns breaks as output

minor_breaks

One of:

  • NULL for no minor breaks

  • waiver() for the default breaks (one minor break between each major break)

  • A numeric vector of positions

  • A function that given the limits returns a vector of minor breaks.

labels

One of:

  • NULL for no labels

  • waiver() for the default labels computed by the transformation object

  • A character vector giving labels (must be same length as breaks)

  • A function that takes the breaks as input and returns labels as output

limits

One of:

  • NULL to use the default scale range

  • A numeric vector of length two providing limits of the scale. Use NA to refer to the existing minimum or maximum

  • A function that accepts the existing (automatic) limits and returns new limits

units

A string indicating the system of units chosen. Should be:

  • waiver() for using the parent plot units set in ggpsychro()

  • Either "SI" or "IP"

...

Other arguments passed on to scale_(x|y)_continuous()

Examples

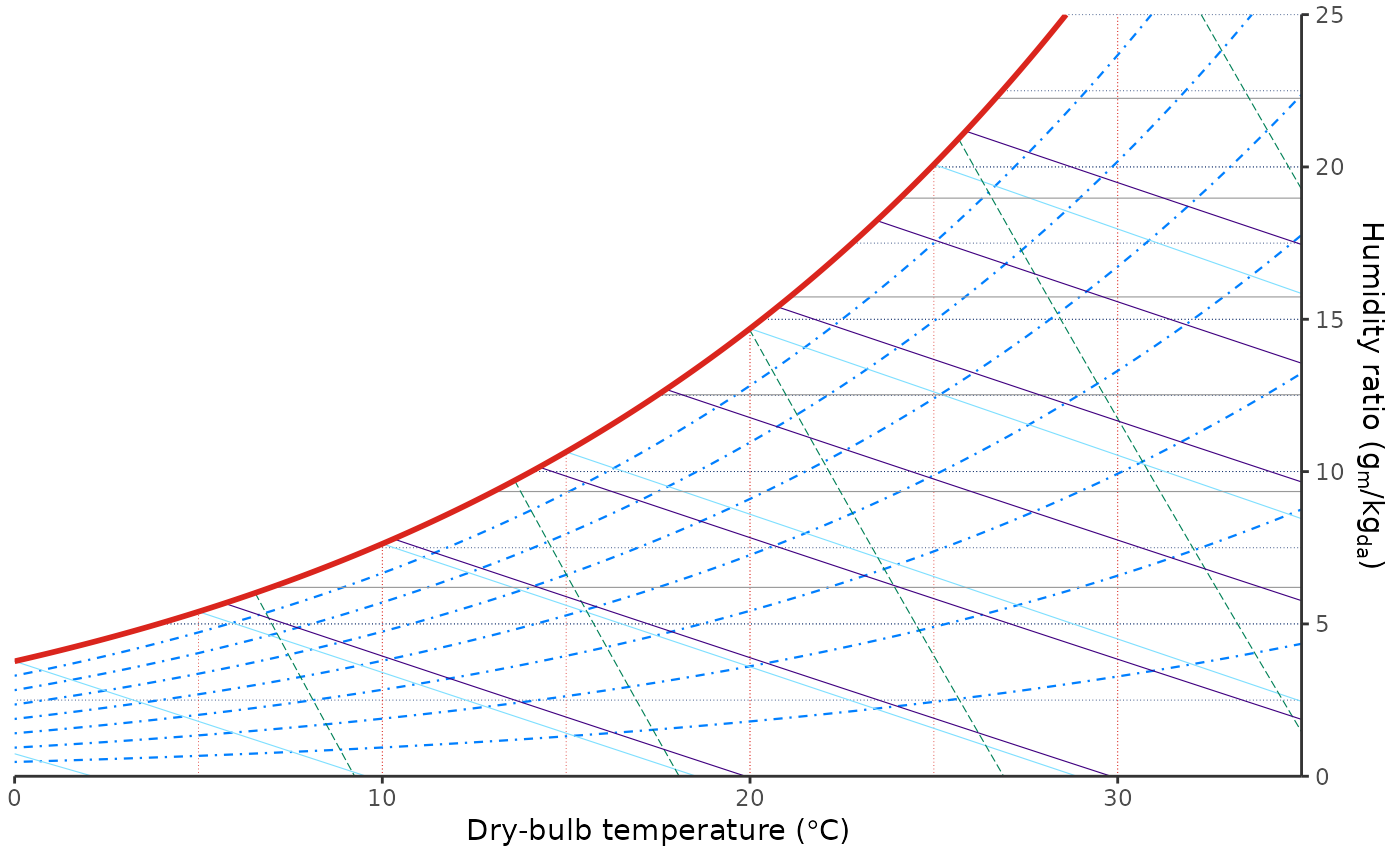

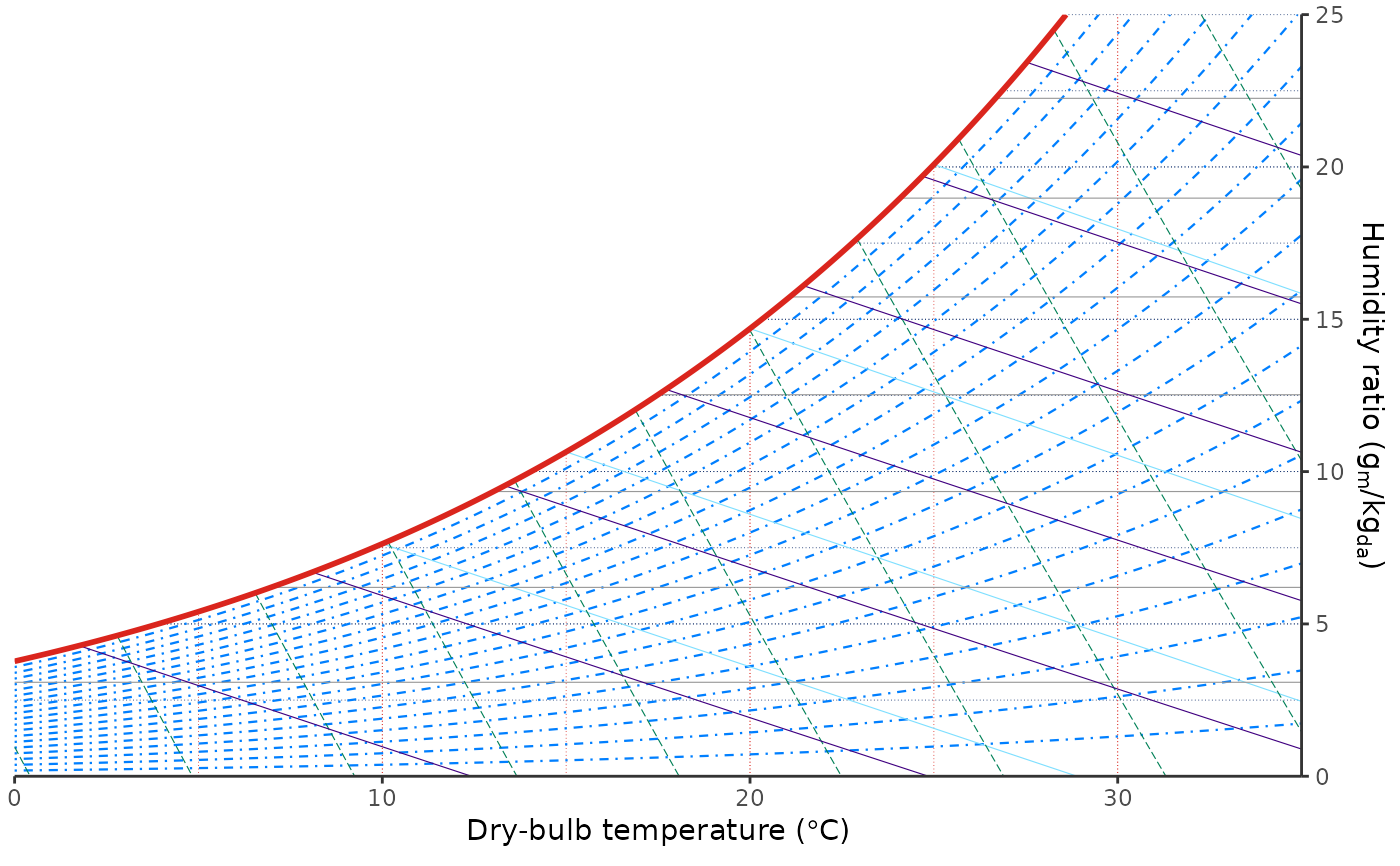

ggpsychro() + geom_grid_relhum() + scale_relhum(minor_breaks = NULL) + geom_grid_wetbulb() + scale_wetbulb(breaks = seq(25, 30, by = 5), minor_breaks = NULL) + geom_grid_vappres() + scale_vappres(breaks = seq(6000, 7000, by = 500), limits = c(6000, 7000)) + geom_grid_specvol() + scale_specvol(labels = NULL)
